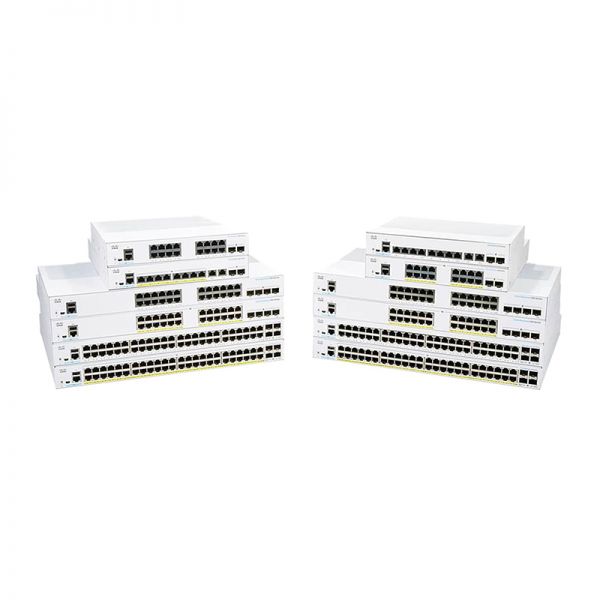

Cisco Business 350 Series Managed Switches
DRAM: 512 MB
CPU: 800 MHz ARM
Packet Buffer: 3 MB
Flash: 256 MB
VLAN: Support for up to 4,094 VLANs simultaneously Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN Management VLAN Private VLAN with promiscuous, isolated, and community port Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN, unauthenticated VLAN Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication CPE VLAN
Unit Dimensions: 445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in)
IPv4 routing: Wirespeed routing of IPv4 packets Up to 990 static routes and up to 128 IP interfaces
IPv6 routing: Wirespeed routing of IPv6 packets
System Power Consumption: 110V=61.53W 220V=60.73W
Spanning Tree Protocol: Standard 802.1d Spanning Tree support Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported
Capacity in Millions of Packets per Second (mpps) (64-byte packets): 130.94
Heat Dissipation (BTU/hr): 1,610.19
Unit Weight: 5.43 kg (11.97 lb)
Port grouping/link aggregation: Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) _ Up to 8 groups _ Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
Switching Capacity in Gigabits per Second (Gbps): 176.0
Hardware stacking: Up to 4 units in a stack. Up to 200 ports managed as a single system with hardware failover Stacking is supported on the following models CBS350-24T-4X, CBS350-24P-4X, CBS350-24FP-4X, CBS350-48T-4X, CBS350-48P-4X, CBS350-48FP-4X CBS350-8MP-2X, CBS350-24MGP-4X, CBS350-12NP-4X, CBS350-24NGP-4X, CBS350-48NGP-4X CBS350-8XT, CBS350-12XS, CBS350-12XT, CBS350-16XTS, CBS350-24XS, CBS350-24XT, CBS350-24XTS, CBS350-48XT-4X
Power Consumption (with PoE): 110V=471.90W 220V=463.32W
From connectivity to cloud applications, networking plays a crucial role in every business journey. Reliability, security, and affordability continue to be top of mind while ongoing management and operations add additional complexity that take time and resources.
Cisco Business is a portfolio of affordable wireless access points, switches and routers designed and built for Small Business. Managed through Cisco Business Dashboard and mobile app, the portfolio provides a simple and reliable experience. Cisco Business Dashboard simplifies traditional challenges in deploying and managing business networks by automating the deployment, monitoring and lifecycle management of the network.
Product Features
- _ Ease of Management and Deployment
- _ High Reliability and Resiliency
- _ Strong Security
- _ Power over Ethernet
- _ IPv6 Support
- _ Advanced Layer 3 Traffic Management
- _ True stacking
- _ Compact Design
- _ Power Efficiency
- _ Peace of Mind and Investment Protection
Bussiness Applications
- _ Secure office connectivity: Cisco Business 350 Series Switches can simply and securely connect employees working in small offices with each other and with all of the servers, printers, and other networking devices they use. High performance and reliable connectivity help speed file transfers and data processing, improve network uptime, and keep your employees connected and productive.
- _ Unified communications: As a managed network solution, the Cisco Business 350 Series Switches provide the performance and advanced traffic-handling intelligence you need to deliver all communications and data over a single network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for businesses. Cisco Business 350 Series Switches have been rigorously tested to help ensure easy integration and full compatibility with these and other products, providing a complete business solution.
- _ Highly secure guest connectivity. Cisco Business 350 Series Switches let you extend highly secure network connectivity to guests in a variety of settings, such as a hotel, an office waiting room, or any other area open to nonemployee users. Using powerful but easy-to-configure security and traffic segmentation capabilities, you can isolate your vital business traffic from guest services and keep guests’ network sessions private from each other.
Quick Spec
Table 1 shows the quick spec.
| Model | Cisco CBS350-8S-E-2G |
| Product Type | Ethernet Switch |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Number of Total Expansion Slots | 10 |
| Product Family | Business 350 |
| Stack Port | Yes |
Accessories and license upgrade PIDs
|
Product number |
Description |
|
SD-IE-1GB= |
1 GB Ruggedized SD memory card (must be ordered, not included by default) |
|
STK-RACK-DINRAIL= |
19 in. DIN Rail mount kit |
|
IE-LICENSE-SPARE |
Spare license for software upgrade (L2 to L3 features, MRP ring, etc) |
|
L-IE2000-L-B= |
IE2000 LAN Lite to LAN Base e-license |
|
L-IE2000-B-E= |
IE2000 LAN Base to Enhanced LAN Base e-license |
|
LIC-IE2000-IP-L= |
IE2000 LAN Base or Enhanced LAN Base to IPLite e-license |
|
LIC-IE2000-L-IP= |
IE2000 LAN Lite to IPLite e-license |
|
LIC-MRP-MANAGER= |
MRP Ring Manager license |
|
LIC-MRP-Client= |
MRP Ring Client license |
|
Wallmount-IE2k-04= |
Wall mount kit accessory for IE2000 4-ports downlink PID |
|
Wallmount-IE2k-08= |
Wall mount kit accessory for IE2000 8-ports downlink PID |
|
Wallmount-IE2k-16= |
Wall mount kit accessory for IE2000 16-ports downlink PID |
