Cisco Catalyst Compact Switch
Старая цена: 2050
Файлы: https://www.router-switch.com/media/upload/product-pdf/selecting-cisco-switches-campus-branch-digital-building.pdf, https://www.router-switch.com/media/upload/product-pdf/guide-to-upgrade-cisco-access-and-backbone-switch.pdf, https://www.router-switch.com/cisco-ws-c3560cg-8pc-s-datasheet-pdf.html
The Cisco Catalyst 3560-CG Compact Switches are small form-factor Fast Ethernet and Gigabit Ethernet switches designed for deployments outside the wiring closet. This WS-C3560CG-8PC-S offers eight Gigabit Ethernet PoE(+) ports and two dual uplinks.
Quick Specs

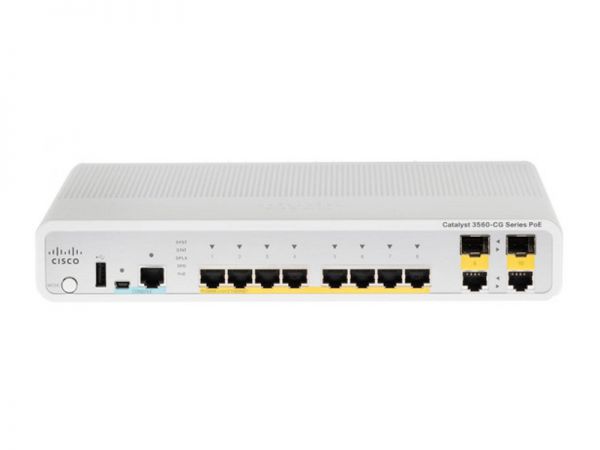

Figure 1 shows the Appearance of WS-C3560CG-8PC-S.
Table 1 shows the Quick Specs.
|
Product Code |
WS-C3560CG-8PC-S |
|
Feature Set |
IP Base |
|
Uplink Interfaces |
2 x 1G copper or 2 x 1G SFP |
|
Ports |
8 x 10/100/1000 Gigabit Ethernet PoE(+) ports |
|
Available PoE Power |
124W |
|
Forwarding Bandwidth |
10 Gbps |
|
RAM |
128 MB |
|
Flash Memory |
64 MB |
|
Dimensions |
4.44 x 26.9 x 23.8 cm |
|
Package Weight |
4.65 Kg |
Product Details
Figure 2 shows the front panel of WS-C3560CG-8PC-S.
Note:
|
_ |
Mode Button |
_ |
System LEDs |
|
_ |
USB Type A port |
_ |
8 x 10/100/1000 Gigabit Ethernet PoE(+) ports |
|
_ |
USB mini-Type B (console) port |
_ |
2 x 1G copper or 2 x 1G SFP |
|
_ |
RJ-45 console port |
Figure 3 shows the back panel of WS-C3560CG-8PC-S.
The Accessories
Table 2 shows some recommended cables and SFP modules.
|
Models |
Descriptions |
|
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B |
|
|
Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
|
|
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
|
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
Compare to similar item
Table 3 shows the comparison between WS-C3560CG-8PC-S and WS-C3560CG-8TC-S.
|
Models |
WS-C3560CG-8PC-S |
|
|
Uplinks |
2 x 1G copper or 2 x 1G SFP |
2 x 1G copper or 2 x 1G SFP |
|
Ports |
8 x 10/100/1000 Gigabit Ethernet |
8 x 10/100/1000 Gigabit Ethernet |
|
Feature set |
IP Base |
IP Base |
|
Available PoE Power |
124W |
None |
