Cisco Catalyst Compact Switches
Input Voltage: 110 V AC 220 V AC
Flash Memory: 64 MB
Form Factor: Rack-mountable Desktop Wall Mountable
Management: DHCP QoS VLAN RMON 1,2,3,9 CiscoWorks LMS SNMP v1,v2c,v3 MIB Syslog Web-based Management CLI Telnet
Product Type: Ethernet Switch
Manufacturer: Cisco
Package Weight: 9.66 lb (4.38 Kg)
Width: 10.6" (26.9 cm)
Depth: 9.4" (23.9 cm)
Height: 1.8" (4.6 cm)
Network Technology: 10/100/1000Base-T 10/100Base-TX
Ethernet Technology: Gigabit EthernetFast Ethernet
Power Source: Power Supply
Product ID: WS-C2960C-8TC-L
Number of Total Expansion Slots: 2
PoE (RJ-45) Port: Yes
Standard Memory: 128 MB
USB: Yes
Memory Technology: DRAM
Expansion Slot Type: SFP
Weight (Approximate): 4.10 lb (1.86 Kg)
Layer Supported: 2
Manageable: Yes
Total Number of Network Ports: 8
Token Ring Port: No
LRE Port: No
Uplink Port: No
Number of RJ-45 Ports: 8
Shared SFP Slot: Yes
Number of SFP Slots: 2
Старая цена: 945
Файлы: https://www.router-switch.com/media/upload/product-pdf/guide-to-upgrade-cisco-access-and-backbone-switch.pdf, https://www.router-switch.com/media/upload/product-pdf/selecting-cisco-switches-campus-branch-digital-building.pdf, https://www.router-switch.com/media/upload/product-pdf/cisco-catalyst-2960-2960-sf-2960-s-series-transition-guide.pdf, https://www.router-switch.com/cisco-ws-c2960c-8tc-l-datasheet-pdf.html
Cisco Catalyst 2960 Compact 8 ports LAN Base switch supports easy deployment and reduces cabling costs. They help to extend services whenever and wherever you want.
Quick Specs

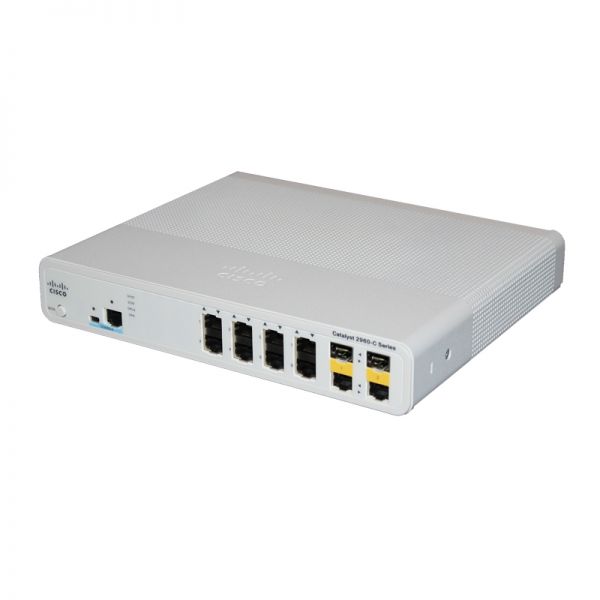

Figure 1 shows the appearance of WS-C2960C-8TC-L.
Table 1 shows the Quick Specs.
|
Product Code |
WS-C2960C-8TC-L |
|
Feature Set |
LAN Base |
|
Uplink Interfaces |
2 x 1G copper or 2 x 1G SFP |
|
Ports |
8 x 10/100 Fast Ethernet |
|
Forwarding Bandwidth |
10 Gbps |
|
RAM |
128 MB |
|
Flash Memory |
64 MB |
|
Dimensions |
4.6cm x 26.9cm x 23.9cm |
|
Package Weight |
4.38 Kg |
Product Details
Figure 2 shows the front panel of?WS-C2960C-8TC-L.
Note: _Mode Button _Mini USB Port _ Console Port _8 x 10/100 Fast Ethernet Ports _?2 x 1G copper or 2 x 1G SFP
Figure 3 shows the back panel of?WS-C2960C-8TC-L.
Note: _Power Connector
The Accessories
Table 2 shows some recommended cables and SFP modules.
|
Models |
Descriptions |
|
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B |
|
|
Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
|
|
GLC-SX-MM GE SFP, LC connector SX transceiver |
|
|
1000BASE-LX/LH SFP for Both Multimode and Single-Mode Fibers |
|
|
1000BASE-BX SFP, 1490NM |
|
|
1000BASE-BX SFP, 1310NM |
|
|
100BASE-FX SFP for FE port |
|
|
100BASE-LX SFP for FE port |
|
|
100BASE-BX10-D SFP |
|
|
100BASE-BX10-U SFP |
Compare to similar item
Table 3 shows the comparison between WS-C2960C-8TC-S and WS-C2960C-8TC-L.
|
Models |
WS-C2960C-8TC-L |
|
|
Uplinks |
2 x 1G copper or 2 x 1G SFP |
2 x 1G copper or 2 x 1G SFP |
|
Ports |
8 x 10/100 Fast Ethernet |
8 x 10/100 Fast Ethernet |
|
Feature set |
LAN Lite |
LAN Base |
Get more information
Do you have any question about the WS-C2960C-8TC-L
Contact us now via Live Chat or [email protected].
