Cisco Switch Catalyst 6500
Input Voltage: 100 to 240 VAC -48 to -60 VDC
Safety: UL 60950 Second Edition CAN/CSA-C22.2 No. 60950 Second Edition EN 60950 Second Edition IEC 60950 Second Edition AS/NZS 60950
EMC: FCC Part 15 (CFR 47) Class A VCCI Class A EN55022 Class A CISPR 22 Class A CE marking AS/NZS 3548 Class A ETS300 386 EN55024 EN61000-6-1 EN50082-1
Operating Temperature: 32°F to 104°F (0 to 40°C)
Storage Temperature: -4 to 149°F (-20 to 65°C)
Rack Units (RU): 5
Network Management: Check the corresponding supervisor engine data sheet
Relative Humidity: Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95%
Operating Altitude: Certified for operation: 0 to 6500 ft (0 to 2000 m) Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m)
Number of Slots: 4
Module Compatibility: All modules based on the software release in the system
Inches: 8.75 x 17.5 x 21.75
Centimeters: 22.2 x 44.45 x 55.25
NEBS/ETSI: GR-1089-Core NEBS Level 3 ETS 300 019 Storage Class 1.1 ETS 300 019 Transportation Class 2.3 ETS 300 019 Stationary Use Class 3.1
Thermal Transition: 0.5°C per minute (hot to cold) 0. 33°C per minute (cold to hot)
Supervisor Compatibility: Cisco Catalyst 6500 Series Supervisor Engine 32 Cisco Catalyst 6500 Series Supervisor Engine 720-3B Cisco Catalyst 6500 Series Supervisor Engine 720-3BXL Cisco Catalyst 6500 Series Supervisor Engine 720-10G-3C Cisco Catalyst 6500 Series Supervisor Engine 720-10G-3CXL Cisco Catalyst 6500 Series Supervisor Engine 2T
Power Supply Compatibility * Indicates EoS Power Supply: AC: 2700W DC: 2700W
With Supervisor Engine 32: _ 12.2(18)SXF
With Supervisor Engine 720: _ 12.2(18)SXE
With Supervisor Engine 720-10 GE: _ 12.2(33)SXH
With Supervisor Engine 2T-10 GE: _ 15.0(1)SY
Reliability and Availability Calculated Mean Time Between Failure (MTBF): 677,643
MIBS: Check the corresponding supervisor engine data sheet
Chassis Only (lbs): 40
Fully Configured (lbs): 97
ATIS Pb free and Energy Efficiency: ATIS-0600020.2010 Pb Free circuit packs ATIS-0600015-2009 General Energy Efficiency Requirements (TEER) ATIS-0600015.03-2009 Switch and Router Energy Efficiency ATIS-0600015.01-2009 Server Energy Efficiency VZ.TPR.9205 Verizon Energy Efficiency Requirements for Telecommunication Equipment (TEEER)
Старая цена: 7157
Файлы: https://www.router-switch.com/media/upload/product-pdf/guide-to-upgrade-cisco-access-and-backbone-switch.pdf, https://www.router-switch.com/media/upload/product-pdf/selecting-cisco-switches-campus-branch-digital-building.pdf, https://www.router-switch.com/cisco-ws-c6504-e-used-datasheet-pdf.html
Cisco introduces the Cisco® Catalyst® 6500 Enhanced Series Chassis (6500-E Series) delivering up to 2 terabits per second of system bandwidth capacity and 80 Gbps of per-slot bandwidth. In a system configured for VSS, this translates to a system capacity of 4 Tbps. The Cisco® Catalyst® 6500 Enhanced Series Chassis will be capable of delivering up to 180 Gbps of per-slot bandwidth with a system capacity of up to 4 terabits per second. A system configured for VSS will be capable of delivering up to 8 Tbps of system bandwidth.
The Cisco Catalyst 6500-E Series Switch offers the broadest range of interface modules with industry-leading performance and advanced feature integration. The Cisco Catalyst 6500-E Series Switch also offers high port densities and comes in 3-, 4-, 6-, 9, 9-Vertical, and 13-slot versions that make it ideal for a range of deployment scenarios.
Quick Specs

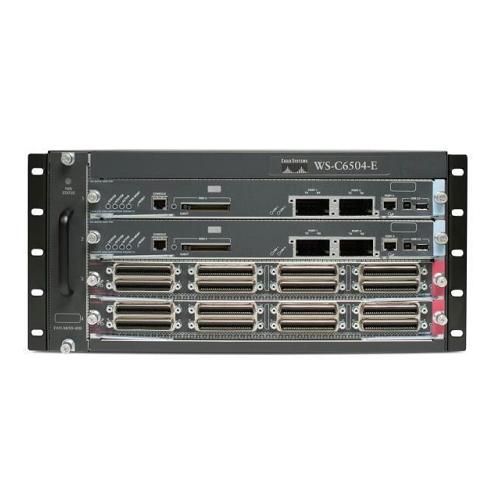

Figure 1 shows the appearance of WS-C6504-E.
Table 1 shows the Quick Specs.
|
Product Code |
WS-C6504-E |
|
Operating Altitude: |
Certified for operation: 0 to 6500 ft (0 to 2000 m). Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m). |
|
AC Internal: |
110 |
|
Power Supply Compatibility: |
AC: 2700W; DC: 2700W |
|
Operating Temperature : |
32 F to 104 F (0 to 40 C) |
|
Storage Temperature: |
-4 to 149 F (-20 to 65 C) |
|
MTBF: |
677,643 hours |
|
Maximum forwarding performance (IPv4): |
210 Mpps |
|
Slots: |
4 |
|
Max 1 GE ports: |
147 |
|
Relative Humidity: |
Ambient (noncondensing) - Operating: 5% to 90%; Nonoperating and storage: 5% to 95% |
|
Weight (fully configured): |
97 lbs (44 kg) |
|
DC Internal: |
2700 |
|
Weight (chassis): |
40 lbs (17.8 kg) |
|
Dimensions (H x W x D): |
8.7 x 17.5 x 21.6 in. (22.2 x 44.5 x 55.2 cm.) |
|
Max 10-100-1000 ports: |
145 |
|
Max 10 GE ports: |
50 |
|
Input Voltage: |
100 to 240 VAC; -48 to -60 VDC |
|
Max 40 GE ports: |
12 |
|
Rack Units: |
5 |
|
Thermal Transition: |
0.5 C per minute (hot to cold); 0.33 C per minute (cold to hot) |
|
Ports: |
16 |
Product Details
Figure 2 shows the Catalyst 6504-E Switch—Front View.
Note:
|
_ |
Supervisor engine |
|
_ |
Redundant supervisor engine |
|
_ |
OSMs |
The Modules, Cards, Licenses
Table 2 shows the recommended elements for the WS-C6504-E.
|
Category |
Model |
Description |
|
Cards and Modules |
Cisco 6500 Supervisor 2T VS-S2T-10G Catalyst 6500 Supervisor 2T - 2 ports 10GbE X2 - 2 ports SFP - MSFC5 PFC4 |
|
|
Cisco 6500 Supervisor 2T VS-S2T-10G-XL Catalyst 6500 Supervisor 2T 80G System XL |
||
|
Fan Tray |
High-Speed Fan Module for 7604/6504-E |
Compare to Similar Items
Table 3 shows the comparison of WS-C6513-E and WS-C6504-E.
|
Product Code |
WS-C6504-E |
|
|
Power Supply Compatibility: |
AC: 3000W, 4000W, 6000W, 8700W; DC: 2500W, 4000W, 6000W |
AC: 2700W; DC: 2700W |
|
MTBF: |
311,778 hours |
677,643 hours |
|
Maximum forwarding performance (IPv4): |
720 Mpps |
210 Mpps |
|
Slots: |
13 |
4 |
|
Max 1 GE ports: |
534 |
147 |
