Huawei CloudEngine 5800 Data Center Switches
QoS: Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority
Dimensions (W x D x H): 442 mm x 600 mm x 43.6 mm
Forwarding Rate: 480 Mpps
Reliability: LACP
Switching Capacity: 640 Gbit/s
Multicast: IGMP snooping
MAC Address Table: Maximum: 128k
Programmability: OpenFlow
VLAN: Adding access, trunk, and hybrid interfaces to VLANs
Environmental Parameters: Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m) Storage temperature: -40°C to 70°C (-40°F to 158°F) Relative humidity: 5% RH to 95% RH, non-condensing
SFP+ Ports: 24
QSFP+ Ports: 2
Operating Voltage: AC: 90V to 290V DC: -38.4V to -72V
Traffic Analysis: NetStream
Max. Power Consumption: 171W
IP Routing: IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS
ACL: Ingress: 1,250 Egress: 500
Configuration and Maintenance: Console, Telnet, and SSH terminals
Security and Management: 802.1x authentication
10G Base-T Ports: 0
Airflow Design: Front-to-back or back-to-front
Device Virtualization: iStack
Network Virtualization: M-LAG
VM Awareness: Agile Controller
Network Convergence: FCoE
ARP (maximum): 1.5k
IPv4 FIB (maximum): 1.5k
IPv6 FIB (maximum): /
Multicast FIB (maximum): /
Weight (fully loaded): 10.1 kg (22.3 lb)
Файлы: https://www.router-switch.com/huawei-ce6810-li-f-b0c-datasheet-pdf.html
CE6810-LI-F-B0C is one of the Huawei CE6810-24S2Q-LI Series Switches. Huawei CE6810-24S2Q-LI Series Switches provide high-throughput, low-latency performance for data centers and high-end campus networks. 2 40 GE uplink ports enable exceptional performance when bridging with core switches using a Transparent Interconnection of Lots of Links (TRILL) network. Combine CE6800 and CE12800 switches to implement a non-blocking network platform. Huawei CloudEngine 6800 (CE6800) series switches are next-generation 10G Ethernet switches designed for data centers and high-end campus networks. Using the Huawei VRP8 software platform, CE6800 switches provide extensive data center service features and high stacking capability. In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE6800 switches can work with CE12800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers.o help enterprises and carriers build a scalable data center network platform in the cloud computing era.
Quick Specs

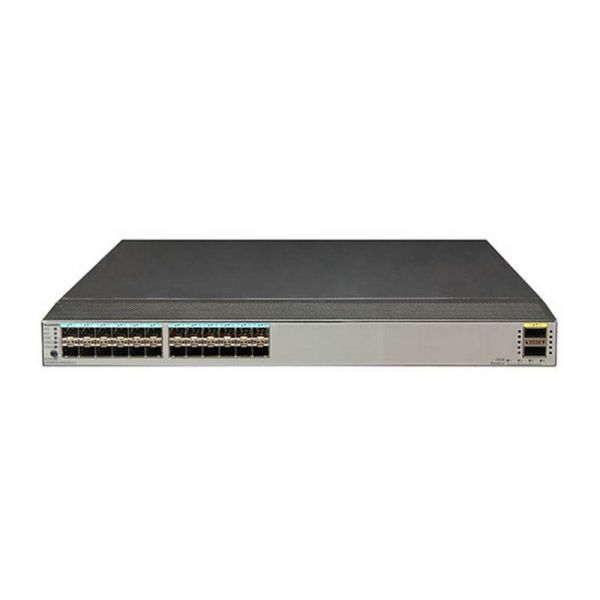

Figure 1 shows the appearance of CE6810-LI-F-B0C.
Table 1 shows the Quick Specs.
|
Product Code |
CE6810-LI-F-B0C |
|
Part Number |
02350GUE |
|
Software Version |
V100R005C10 and later |
|
Fixed GE interfaces |
None |
|
Fixed 10GE interfaces |
24*10GE SFP+ |
|
Fixed 40GE interfaces |
2*40GE QSFP+ A 40GE interface can be split into four 10GE interfaces. |
|
Fixed 100GE interfaces |
None |
|
Switching Capacity |
640 Gbit/s |
|
Forwarding Rate |
480 Mpps |
|
Rated voltage range(with power module) |
100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
|
Maximum power consumption |
171W |
|
Airflow Design |
Front-to-back or back-to-front |
|
Dimensions (W x D x H) |
442 mm x 600 mm x 43.6 mm |
|
Weight (fully loaded) |
10.1 kg (22.3 lb) |
Product Details
Figure 2 shows the rear (port side) panel of CE6810-LI-F-B0C.
Note:
|
_ |
Twenty-four 10GE SFP+ Ethernet optical ports |
|
_ |
Two 40GE QSFP+ Ethernet optical ports |
Figure 3 shows the front (power supply side) panel of CE6810-LI-F-B0C.
Note:
|
_ |
Power supply slot 1 |
|
_ |
Fan slot 1 |
|
_ |
Console port |
|
_ |
Bar code label |
|
_ |
Fan slot 2 |
|
_ |
Power supply slot 2 |
|
_ |
USB port |
|
_ |
ETH management port |
The Modules
Table 2 shows the recommended elements for the CE6810-LI-F-B0C.
|
Model |
Description |
|
|
AC power module |
||
|
|
600W AC Power Module(Front to Back,Power panel side intake) |
|
|
|
600W AC Power Module(Back to Front,Power panel side exhaust) |
|
|
GE-SFP Optical Transceiver |
||
|
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
||
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
||
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
||
|
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
||
|
10G-SFP+ Optical Transceiver |
||
|
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
||
|
Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
||
|
40GE QSFP+ optical transceiver |
||
|
|
40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver) |
|
|
|
40GBase-LR4 Optical Transceiver,QSFP+,40GE,Single-mode Module(1310nm,10km,LC) |
|
|
GE Copper Transceiver |
||
|
Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
||
|
FAN-40EA |
||
|
|
Fan box(EA,Front to Back,FAN panel side intake) |
|
|
|
Fan box(EA,Back to Front,FAN panel side exhaust) |
|
Compare to Similar Items
Table 3 shows the comparison of CE6810-LI-F-B0C, CE6810-32T16S4Q-LI-B and CE6810-48S4Q-EI.
|
Product Code |
CE6810-LI-F-B0C |
||
|
Software Version |
V100R005C10 and later |
V100R005C10 and later |
V100R003C00 and later |
|
Fixed 10GE interfaces |
24*10GE SFP+ |
32*10GBASE-T 16*10GE SFP+ |
48*10GE SFP+ |
|
Fixed 40GE interfaces |
2*40GE QSFP+ A 40GE interface can be split into four 10GE interfaces. |
4*40GE QSFP+ A 40GE interface can be split into four 10GE interfaces |
4*40GE QSFP+ A 40GE interface can be split into four 10GE interfaces. |
|
Fixed 100GE interfaces |
None |
None |
None |
|
Switching Capacity |
640 Gbit/s |
1.28 Tbit/s |
1.28 Tbit/s |
|
Forwarding Rate |
480 Mpps |
960 Mpps |
960 Mpps |
|
Maximum power consumption |
171W |
288W |
238W |
