Huawei Data Center Switches
Maximum Power Consumption: 131W
QoS: Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority
Dimensions (W x D x H): 442 mm x 420 mm x 43.6 mm
IPv6: IPv6 Neighbor Discovery (ND) (not supported by CE5855)
Reliability: LACP
Switching Capacity: 336 Gbit/s
Multicast: IGMP, PIM-SM, PIM-DM, MSDP, and MBGP
MAC Address Table: maximum: 128k
VLAN: Adding access, trunk, and hybrid interfaces to VLANs
Environmental Parameters: Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m)
SFP+ Ports: 4
QSFP+ Ports: 2
Operating Voltage: AC: 90V to 264V
Traffic Analysis: NetStream
IP Routing: IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS
ACL: ingress: 2.25k egress: 1k
Configuration and Maintenance: Console, Telnet, and SSH terminals
Security and Management: 802.1x authentication
Airflow Design: Front-to-back or back-to-front
Device Virtualization: iStack
Network Virtualization: M-LAG
VM Awareness: Agile Controller
ARP (maximum): 16k
IPv4 FIB (maximum): 16k
IPv6 FIB (maximum): 8k
Multicast FIB (maximum): 4k
Weight (fully loaded): 8.8 kg (19.4 lb)
Base-T Ports: 48
Forwarding Rates: 252 Mpps
SDN: Open Programmability System (OPS)
Файлы: https://www.router-switch.com/huawei-ce5850-48t4s2q-hi-b-datasheet-pdf.html
CE5850-48T4S2Q-HI-B is one of the Huawei Huawei CE5850-48T4S2Q-HI switches. Huawei CE5850-48T4S2Q-HI provides 48 * GE line-speed ports plus 4 * 10 GE and 2 * 40G upstream ports for stacking up to 16 switches. 10 GE and 40G ports enable creation of a non-blocking stack that can extend across geographical distances between data centers. Using the Huawei VRP8 software platform, CE5800 switches support Transparent Interconnection of Lots of Links (TRILL) and have a high stacking capability (up to 16-member switches in a stack system). In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE5800 switches can work with CE12800 switches to build an elastic, virtualized, high-quality fabric that meets the requirements of cloud-computing data centers. CE5800 switches provide high-density GE access to help enterprises build a scalable data center network platform for cloud computing. They can also be used as aggregation or access switches for enterprise campus networks.
Quick Specs

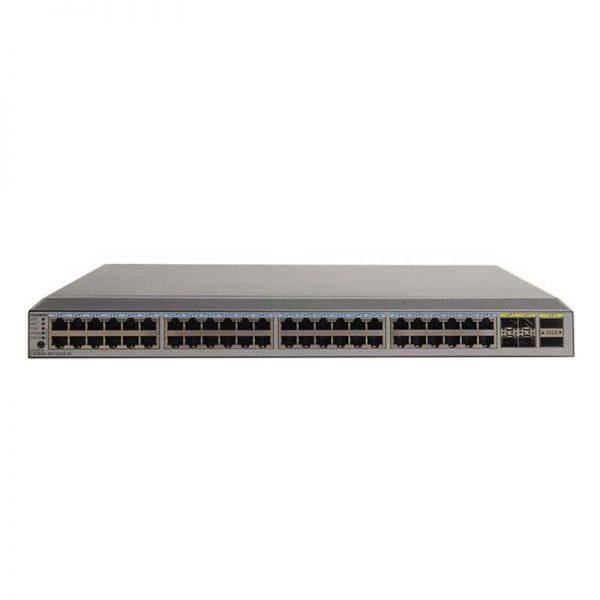

Figure 1 shows the appearance of CE5850-48T4S2Q-HI-B.
Table 1 shows the Quick Specs.
|
Product Code |
CE5850-48T4S2Q-HI-B |
|
Part Number |
02350EYD |
|
Software Version |
V100R003C00 and later |
|
Base-T Ports |
48 |
|
SFP+ Ports |
4 |
|
QSFP+ Ports |
2 |
|
Switching Capacity |
336 Gbit/s |
|
Forwarding Rate |
252 Mpps |
|
Rated voltage range (with power module) |
100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
|
Maximum power consumption |
131W |
|
Airflow |
Front-to-back or back-to-front |
|
Dimensions (W x D x H) |
442 mm x 420 mm x 43.6 mm |
|
Weight (fully loaded) |
8.8 kg (19.4 lb) |
Product Details
Figure 2 shows the CE5850-48T4S2Q-HI-B rear view (port side).
Note:
|
_ |
Forty-eight 10/100/1000BASE-T Ethernet electrical ports |
|
_ |
Four 10GE SFP+ Ethernet optical ports |
|
_ |
Two 40GE QSFP+ Ethernet optical ports |
Figure 3 shows the CE5850-48T4S2Q-HI-B front view (power supply side).
Note:
|
_ |
Power supply slot 1 |
|
_ |
Fan slot 1 |
|
_ |
Console port |
|
_ |
ETH management port |
|
_ |
Bar code label |
|
_ |
USB port |
|
_ |
Fan slot 2 |
|
_ |
Power supply slot 2 |
The Modules
Table 2 shows the recommended elements for the CE5850-48T4S2Q-HI-B.
|
Model |
Description |
|
GE-SFP Optical Transceiver |
|
|
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
|
|
10G-SFP+ Optical Transceiver |
|
|
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
|
|
Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
|
|
Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC) |
|
|
GE Copper Transceiver |
|
|
Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
|
|
FAN-40EA |
|
|
|
FAN-40EA-F fan module (front-to-back, air intake on panel) |
|
|
FAN-40EA-B fan module (back-to-front, air exhaust on panel) |
Compare to Similar Items
Table 3 shows the comparison of CE5850-48T4S2Q-HI-B and CE5850-48T4S2Q-EI-B.
|
Product Code |
CE5850-48T4S2Q-HI-B |
|
|
Part Number |
02350EYD |
02350EXY |
|
Software Version |
V100R003C00 and later |
V100R001C00 and later |
|
Base-T Ports |
48 |
48 |
|
SFP+ Ports |
4 |
4 |
|
QSFP+ Ports |
2 |
2 |
|
Switching Capacity |
336 Gbit/s |
336 Gbit/s |
|
Forwarding Rate |
252 Mpps |
252 Mpps |
|
Maximum power consumption |
131W |
131W |
