Huawei Data Center Switches
QoS: Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority
Dimensions (W x D x H): 442 mm x 600 mm x 43.6 mm
IPv6: IPv6 Neighbor Discovery (ND)
Forwarding Rate: 1,080 Mpps
Reliability: LACP
Switching Capacity: 1.44 Tbit/s
Multicast: IGMP, PIM-SM, PIM-DM, MSDP, and MBGP
MAC Address Table: Maximum: 288k
MPLS: MPLS (CE6800HI)
Programmability: OpenFlow
VLAN: Adding access, trunk, and hybrid interfaces to VLANs
Environmental Parameters: Operating temperature: 0°C to 40°C (32°F to 104°F) (0m to 1,800m) Storage temperature: -40°C to 70°C (-40°F to 158°F) Relative humidity: 5% RH to 95% RH, non-condensing
SFP+ Ports: 48
QSFP+ Ports: 6
Operating Voltage: AC: 90V to 290V DC: 240V & 380V
Traffic Analysis: NetStream
Max. Power Consumption: 339W
IP Routing: IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS
FC Ports: 48
ACL: Ingress: 3,750 Egress: 1,000
Configuration and Maintenance: Console, Telnet, and SSH terminals
Security and Management: 802.1x authentication
10G Base-T Ports: 0
Airflow Design: Front-to-back or back-to-front
Device Virtualization: iStack
Network Virtualization: M-LAG
VM Awareness: Agile Controller
Network Convergence: FCoE
ARP (maximum): 128k
IPv4 FIB (maximum): 256k
IPv6 FIB (maximum): 128k
Multicast FIB (maximum): 8k
Weight (fully loaded): 12.6 kg (27.8 lb)
Файлы: https://www.router-switch.com/huawei-ce6850u-48s6q-hi-f-datasheet-pdf.html
CE6850U-48S6Q-HI-F is Huawei CE6850U-48S6Q-HI Switch(48-Port 10GE SFP+,support 2/4/8G FC,6-Port 40GE QSFP+,2*FAN Box,Port-side Exhaust,Without Power Module). Support for Fiber Channel over Ethernet (FCoE) allows a single network to carry storage, data, and computing services, reducing network construction and maintenance costs the industry.
Quick Specs

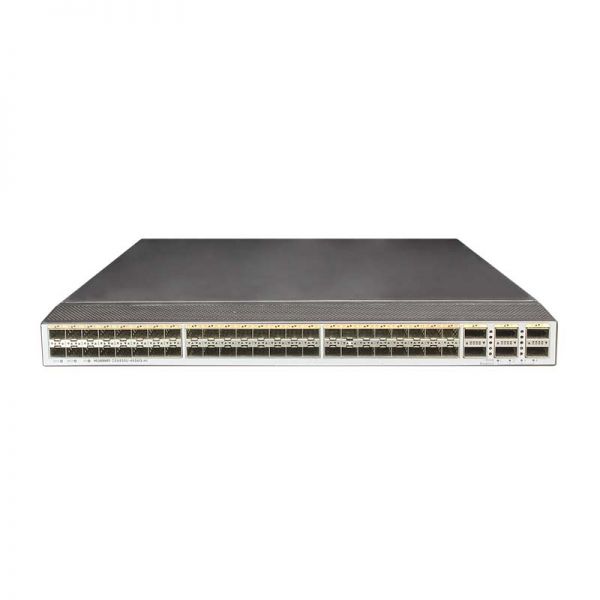

Figure 1 shows the appearance of CE6850U-48S6Q-HI-F.
Table 1 shows the Quick Specs.
|
Product Code |
CE6850U-48S6Q-HI-F |
|
Part Number |
02350EHF |
|
10G Base-T Ports |
0 |
|
SFP+ Ports |
48 |
|
FC Ports |
48 |
|
QSFP+ Ports |
6 |
|
Switching Capacity |
1.44 Tbit/s |
|
Forwarding Rate |
1,080 Mpps |
|
Airflow Design |
Front-to-back or back-to-front |
|
Maximum power consumption |
339 W |
|
Typical power consumption |
235W |
|
Dimensions (W x D x H) |
442 mm x 600 mm x 43.6 mm |
|
Weight (fully loaded) |
12.6 kg (27.8 lb) |
Product Details
Figure 2 shows the rear (port side) panel of CE6850U-48S6Q-HI-F.
Note:
|
_ |
Forty-eight 10GE SFP+ Ethernet optical ports |
|
_ |
Six 40GE QSFP+ Ethernet optical ports |
Figure 3 shows the front (power supply side) panel of CE6850U-48S6Q-HI-F.
Note:
|
_ |
Ground screw |
|
_ |
Two ETH management ports (combo) |
|
_ |
Console port |
|
_ |
Mini USB port |
|
_ |
Fan slot 1 |
|
_ |
Fan slot 2 |
|
_ |
Power supply slot 1 |
|
_ |
Power supply slot 2 |
|
_ |
Barcode label |
|
_ |
USB port |
The Modules
Table 2 shows the recommended elements for the CE6850U-48S6Q-HI-F.
|
Model |
Description |
|
FE-SFP Optical Transceiver |
|
|
Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC) |
|
|
Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC) |
|
|
Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC) |
|
|
GE-SFP Optical Transceiver |
|
|
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
|
|
10G-SFP+ Optical Transceiver |
|
|
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
|
|
Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
|
|
40GE QSFP+ optical transceiver |
|
|
40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver) |
|
|
40GBase-LR4 Optical Transceiver,QSFP+,40GE,Single-mode Module(1310nm,10km,LC) |
|
|
FAN-060A |
|
|
Fan box(F,FAN panel side intake ) |
|
|
Fan box(B,FAN panel side exhaust) |
|
Compare to Similar Items
Table 3 shows the comparison of CE6850U-48S6Q-HI-F and CE6850U-24S2Q-HI-B.
|
Product Code |
CE6850U-48S6Q-HI-F |
|
|
10G Base-T Ports |
0 |
0 |
|
SFP+ Ports |
48 |
24 |
|
FC Ports |
48 |
24 |
|
QSFP+ Ports |
6 |
2 |
|
Switching Capacity |
1.44 Tbit/s |
640 Gbit/s |
|
Forwarding Rate |
1,080 Mpps |
480 Mpps |
|
Airflow Design |
Front-to-back or back-to-front |
Front-to-back or back-to-front |
|
Maximum power consumption |
339 W |
282 W |
|
Typical power consumption |
235W |
183 W |
