Huawei Data Center Switches

Model: CE8861-4C-EI-B - Huawei CE8800 Data Center Switches
Brand: Huawei
Operating Temperature: 0??C to 45??C
Storage Temperature: -40??C to 70??C
Max Power Consumption: 1250 Watts
Form Factor: Mainframe
Warranty: 1 Year
Operating Humidity: 5% to 95% (non-condensing)
Dimensions (HxWxD): 451.2 mm x 442 mm x 700 mm
Software Features: IPv4/IPv6, MPLS, OSPF, BGP, QoS
Port Types: Supports various types depending on subcards
Network Security: MAC security, ACL, Secure Boot
Cooling Method: Port-side Intake
Heat Dissipation: 4266.79 BTU/hr
Airflow Direction: Port-side Intake
Fan Box: 2
Management Protocol: SNMP, CLI, Web-based
Subcard Slots: 4
Power Modules: 2 x AC Power Module
AC Voltage Range: 100V-240V AC

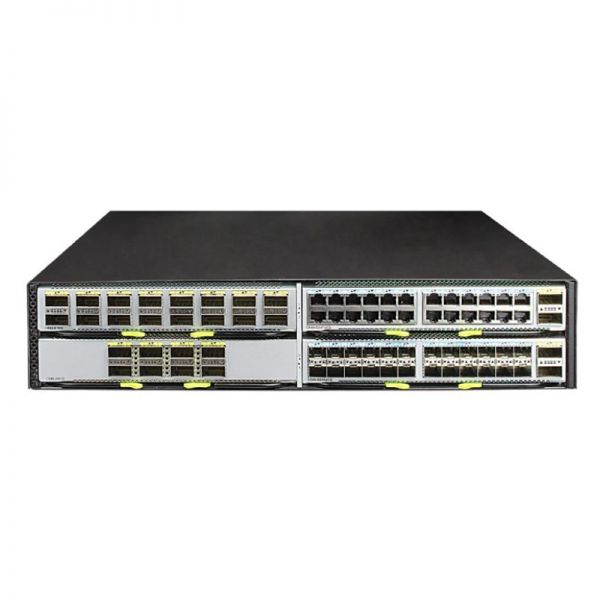

The Huawei CE8861-4C-EI-B is an advanced mainframe equipped to deliver high-performance networking solutions. Featuring 4 subcard slots, dual AC power modules, and a dual fan box with port-side intake, this mainframe is designed for reliability and efficiency. Suitable for various demanding environments, it's a top choice for network administrators seeking robust infrastructure.

Quick Spec

Model	CE8861-4C-EI-B
Subcard Slots	4
Power Module	2*AC
Fan Box	2
Intake	Port-side

Product Features

• 4 subcard slots for enhanced flexibility
• Dual AC power modules ensuring continuous operation
• Port-side intake for efficient cooling
• Compact design with high port density
• Highly efficient dual fan box for better airflow management

Product Applications

• Data Center Networks: Ideal for high-density environments requiring rigorous performance
• Enterprise IT Infrastructure: Perfect for complex enterprise IT needs with high uptime and reliability
• Cloud Computing: Enhances cloud services with robust networking capabilities

Supported Options

Subcard	CE88-SC-4X24-S
AC Power Module	CE88-PWR-AC2000W
Fan Box	CE88-FAN-BOX

Compare to Similar Items

Model	CE8861-4C-EI-B	CE8860-4C-EI-A	CE8863-4C-EI-C
Subcard Slots	4	3	5
Power Module	2*AC	1*DC	2*AC
Fan Box	2	1	3
Intake Type	Port-side	Rear-side	Port-side
Cooling Efficiency	High	Medium	High

Get more information

For further details about the Huawei CE8861-4C-EI-B, including pricing and the datasheet, you can contact us through Live Chat or email at [email protected]. Check Huawei CE8861-4C-EI-B price and CE8861-4C-EI-B datasheet, buy Huawei CE8861-4C-EI-B series with the best prices and fast shipping. Free Live Chat support is available.
