Huawei S2700 Series Switches
Product Description: Huawei Quidway S2700-26TP-SI-AC - switch - 24 ports - Managed - desktop
Device Type: Switch - 24 ports - Managed - stackable
Dimensions (WxDxH): 44.2 cm x 22 cm x 4.4 cm
Interfaces: Gigabit Ethernet
Performance: Forwarding performance : 6.6 Mpps
Weight: 2.4 kg
Routing Protocol: IGMPv2, IGMP, IGMPv3, static IPv6 routing
Remote Management Protocol: SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Features: VLAN support, IGMP snooping, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Multicast Suppression
Compliant Standards: IEEE 802.1Q, IEEE 802.1p
Power: AC 120/230 V ( 50/60 Hz )
Enclosure Type: Desktop
Power Device: Internal power supply
Voltage Required: AC 120/230 V ( 50/60 Hz )
Min Operating Temperature: 0 °C
Max Operating Temperature: 50 °C
Humidity Range Operating: 10 - 90% (non-condensing)
Power Consumption Operational: 15.5 Watt
Authentication Method: Secure Shell (SSH), RADIUS, TACACS+
Dimensions (W x D x H): 44.2 cm x 22 cm x 4.4 cm
Capacity: Virtual interfaces (VLANs) : 4000
Ports: 24 x 10/100 + 2 x combo Gigabit SFP
MAC Address Table Size: 8K entries
Subtype: Gigabit Ethernet
Min Storage Temperature: -5 °C
Max Storage Temperature: 55 °C
Humidity Range Storage: 10 - 90% (non-condensing)
Файлы: https://www.router-switch.com/media/upload/product-pdf/comparison-between-huawei-s2700-si-s2700-ei-s-switches.pdf, https://www.router-switch.com/huawei-s2700-26tp-si-ac-datasheet-pdf.html
Huawei S2700-26TP-SI-AC is a switch that supports 24 Ethernet 10/100 ports and 2 dual-purpose 10/100/1,000 or SFP ports. It’s one of the S2700 Series Enterprise Switches that deliver 100 Mbit/s access switches for enterprise campus networks.
Quick Specs

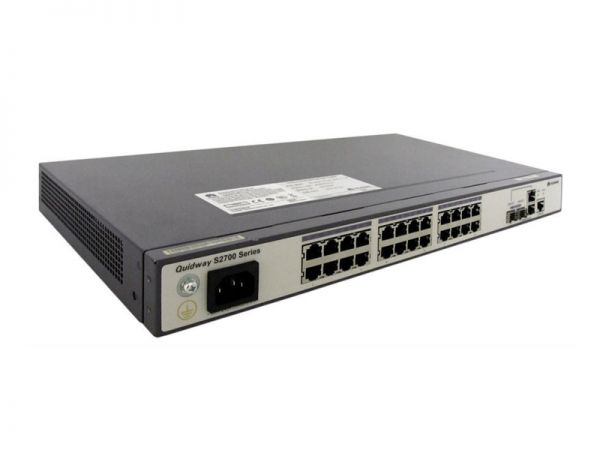

Figure 1 shows the appearance of Huawei S2700-26TP-SI-AC switch.
Table 1 shows the Quick Specs.
|
Product Code |
S2700-26TP-SI-AC |
|
Downlink Ports |
24 Ethernet 10/100 ports |
|
Uplink Ports |
2 dual-purpose 10/100/1,000 or SFP ports |
|
MAC Address |
8K MAC address entries |
|
Forwarding Performance |
6.6 Mpps |
|
Switching Capacity |
32 Gbit/s |
|
Power |
AC 120/220 V ( 50/60 Hz ) |
|
Heat Dissipation |
Fan-free natural heat dissipation |
|
Dimensions (W x D x H) |
44.2 cm x 22 cm x 4.4 cm |
|
Weight |
3.6 Kg |
Product Details
Figure 2 shows the front panel of Huawei S2700-26TP-SI-AC switch.
Note:
|
_ |
Ground Screw |
_ |
Two combo ports (10/100/1000BASE-T + 100/1000BASE-X) |
|
_ |
AC socket |
_ |
One console port |
|
_ |
24 10/100BASE-TX Ethernet Electrical Ports |
· Ground Screw is used with a ground cable.
· Two Combo Ports include 10/100/1000BASE-T and 100/1000BASE-X ports. FE/GE/GE-CWDM optical transceivers are applicable to the combo ports.
Figure 3 shows the back looking of Huawei S2700-26TP-SI-AC switch.
The Transceiver
Table 2 shows the recommended optical transceivers.
|
Model |
Description |
|
FE-SFP Optical Transceiver |
|
|
Optical Transceiver,SFP,100M/155M,Multi-mode Module(1310nm,2km,LC) |
|
|
Optical Transceiver,eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
|
|
Optical Transceiver, eSFP, FE, Single-mode Module(1310nm,40km,LC) |
|
|
GE-SFP Optical Transceiver |
|
|
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) |
|
Compare to Similar Item
Table 3 shows the comparison of Huawei S2700-26TP-SI-AC and S2700-26TP-EI-AC switches.
|
Models |
S2700-26TP-SI-AC |
|
|
Downlink Ports |
24 Ethernet 10/100 ports |
24 Ethernet 10/100 ports |
|
Uplink Ports |
2 dual-purpose 10/100/1,000 or SFP |
2 dual-purpose 10/100/1,000 or SFP |
|
Power Supply |
AC |
AC |
|
Version |
Standard |
Enhanced |
