Huawei S2700 Switches
Management: Stack Easy Operation CLI-based configuration Remote configuration using Telnet SNMP V1/V2/V3 Remote network monitoring SSHv2 Web-based device management
QoS: Port-based rate limiting and flow-based rate limiting 8 queues of different priorities on each port Mapping between 802.1p priorities and queues SP, WRR, and SP+WRR algorithms
Weight: S2750-28TP-PWR-EI < 4.5 kg
Power: AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage: 90 to 264 V AC, 50/60 Hz
Dimensions (W x D x H): 442 x 310 x 43.6 mm
Power consumption: S2750-28TP-PWR-EI < 445 W (PoE < 370W)
Reliability: STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s), and RRPP topology and RRPP multi-instance SEP and ERPS (G.8032) Smart Link tree topology and Smart Link multi-instance, implementing millisecond-level protective switchover
Multicast: MVLAN Controllable multicast IGMP v1/v2/v3 snooping Port-based rate limiting for multicast packets
Uplink ports: 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP
Operating environment: Long-term operating temperature: –5°C to + 50°C Relative humidity: 10% to 90% (non-condensing)
Downlink ports: 24 x 10/100Base-TX Ethernet ports
MAC address: 16K MAC address entries Manual deletion of dynamic MAC address entries Aging time of MAC address configurable MAC address learning control which based on ports Blackhole MAC address entries
VLAN feature: 4K VLANs, complying with IEEE 802.1Q Port-based VLAN assignment
IPv6 feature: IPv6 protocol Static IPv6 routes Supports MLD v1/v2 snooping.
Traffic sampling: sFlow
Security & access features: 802.1x authentication and limit on the number of users on an interface Storm suppression IP Source Guard
Surge protection: Surge protection capability of service ports: 6 kV
Файлы: https://www.router-switch.com/media/upload/product-pdf/comparison-between-huawei-s2700-si-s2700-ei-s-switches.pdf, https://www.router-switch.com/huawei-s2750-28tp-pwr-ei-ac-datasheet-pdf.html
Huawei S2750-28TP-PWR-EI-AC switch provides 24 x PoE+ 10/100BASE-TX ports, 2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP. S2750-EI are the sub-series switches of S2700-EI.
Quick Specs

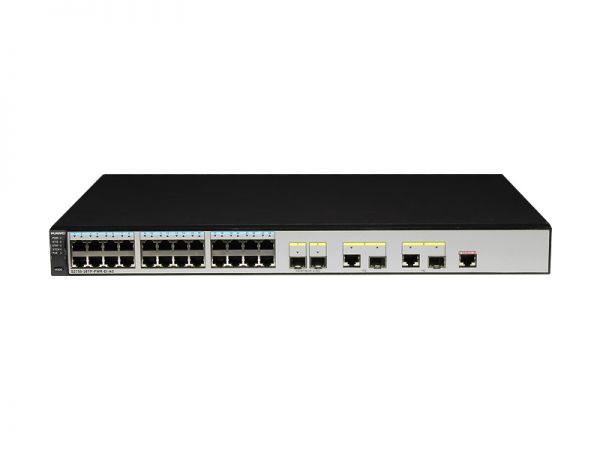

Figure 1 shows the appearance of Huawei S2750-28TP-PWR-EI-AC switch.
Table 1 shows the Quick Specs.
|
Product Code |
S2750-28TP-PWR-EI-AC |
|
Downlink Ports |
24 x Ethernet 10/100 PoE+ ports |
|
Uplink Ports |
2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP |
|
PoE |
Supported |
|
Forwarding Performance |
9.6 Mpps |
|
Switching Capacity |
64 Gbit/s |
|
Power |
AC power supply |
|
Heat Dissipation |
Natural Heat Dissipation |
|
Dimensions (W x D x H) |
442.0 mm x 310.0 mm x 43.6 mm |
|
Weight (Kg) |
4.7 Kg |
Product Details
Figure 2 shows the front panel of Huawei S2750-28TP-PWR-EI-AC switch.
Note:
|
_ |
24 x PoE+ 10/100BASE-TX ports |
_ |
2 x combo ports (10/100/1000BASE-T + 100/1000BASE-X) |
|
_ |
2 x 1000BASE-X ports |
_ |
One console port |
Figure 3 shows the back looking of Huawei S2750-28TP-PWR-EI-AC switch.
Note:
|
_ |
Ground screw |
|
_ |
Jack reserved for AC terminal locking latch |
|
_ |
AC socket |
The Transceiver
Table 2 shows the recommended optical transceivers.
|
Model |
Description |
|
FE-SFP Optical Transceiver |
|
|
Optical Transceiver,SFP,100M/155M,Multi-mode Module(1310nm,2km,LC) |
|
|
Optical Transceiver,eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
|
|
Optical Transceiver, eSFP, FE, Single-mode Module(1310nm,40km,LC) |
|
|
GE-SFP Optical Transceiver |
|
|
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) |
|
Compare to Similar Item
Table 3 shows the comparison of Huawei S2751-28TP-PWR-EI-AC and S2750-28TP-PWR-EI-AC.
|
Models |
S2750-28TP-PWR-EI-AC |
|
|
Downlink Ports |
12 Ethernet 10/100 PoE+ ports 12 Ethernet 10/100 ports |
24 Ethernet 10/100 PoE+ ports |
|
Uplink Ports |
2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP |
2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP |
|
Power Supply |
AC Power Supply |
AC Power Supply |
|
PoE |
Supported |
Supported |
|
Version |
Enhanced |
Enhanced |
