Huawei S5300 Series Switches
Relative humidity: 5% RH to 95% RH, noncondensing
EMC: CISPR22 Class A CISPR24 EN55022 Class A EN50024 ETSI EN 300 386 Class A CFR 47 FCC Part 15 Class A ICES 003 Class A AS/NZS CISPR22 Class A IEC61000-4-2 ITU-T K 20 ITU-T K 44
Security: IEC 60950-1 EN 60950-1/A11/A12 UL 60950-1 CSA C22.2 No 60950-1 AS/NZS 60950.1
Weight: Fully loaded:_ 6.5 kg Empty loaded:_ 5 kg
Dimensions (W x D x H): 442.0 mm x 220.0 mm x 43.6 mm
PoE: No
Operating temperature: -5°C to +55°C NOTE When the switch has the 40 km or longer transmission distance SFP+ optical module installed, the operating temperature range is -5°C to +50°C.
Availability: > 0.99999
Flash: 64 MB
Storage temperature: -40°C to +70°C
Operating altitude: Non-PoE switch: AC: 0 m to 5000 m DC: 0 m to 2000 m
Memory (RAM): 512 MB
Mean time between failures (MTBF): 25.5 years when a 4x10GE card is configured; 34.8 years when a 2x10GE card is configured; 36.1 years when a 4xGE card is configured
Rated voltage range: -48 V DC to -60 V DC 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range: -36 V DC to -72 V DC 90 V AC to 264 V AC, 47 Hz to 63 Hz
Environmental standards: RoHS REACH WEEE
Noise under normal temperature (27°C, sound power): Less than 60 dBA
Mean time to repair (MTTR): 2 hours
Stack ports: Versions earlier than V200R003C00 do not support stack ports. Since V200R003C00, the 10GE ports on the front card can be used as stack ports.
RPS: Not supported
Maximum stack bandwidth (bidirectional): 80 Gbit/s
Maximum system power consumption (100% throughput, 100% PoE loads, full speed of fans): 80.7 W
Laser safety: IEC60825-1 IEC60825-2 EN60825-1 EN60825-2
Service port protectio n: N/A
Power supply protection: AC: ±6 kV in differential mode; ±6 kV in common mode DC: ±1 kV in differential mode; ±2 kV in common mode
Файлы: https://www.router-switch.com/huawei-ls-s5328c-hi-24s-datasheet-pdf.html
Huawei S5300 Series Switch S5328C-HI-24S Mainframe 24 100/1000 SFP Gigabit Ethernet, Chassis, Dual Slots of power, Without Flexible Card and Power Module. It is one of the Quidway S5300 series gigabit switches. The Quidway S5300 series gigabit switches (hereinafter referred to as the S5300s) are new generation Ethernet gigabit switches developed by Huawei to meet the requirements for high-bandwidth access and Ethernet multiservice convergence, providing powerful Ethernet functions for carriers and enterprise customers. Based on the new generation high-performance hardware and Huawei Versatile Routing Platform (VRP) software, the S5300 features large capacity and gigabit interfaces of high density, provides 10G uplinks, meeting customers' requirements for the 1G and 10G uplink devices of high density. The S5300 can meet the requirements of multiple scenarios such as service convergence on campus networks and intranets, the access to the IDC at a rate of 1000 Mbit/s, and the access to computers at a rate of 1000 Mbit/s on intranets.
Quick Specs

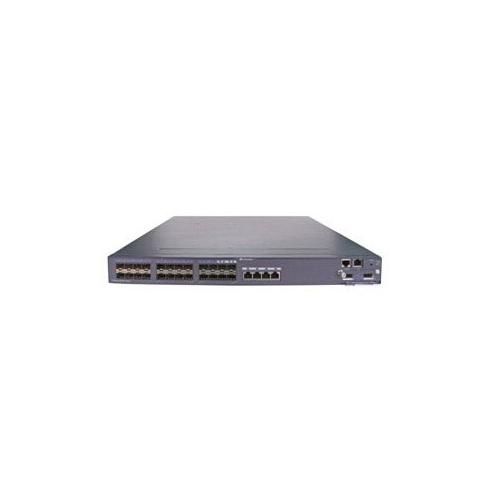

Figure 1 shows the appearance of LS-S5328C-HI-24S.
Table 1 shows the Quick Specs.
|
Product Code |
LS-S5328C-HI-24S |
|
Fixed Port |
Twenty-four 100/1000BASE-X Ethernet optical ports |
|
Maximum stack bandwidth (bidirectional) |
80 Gbit/s |
|
RPS |
Not supported |
|
PoE |
No |
|
Mean time between failures (MTBF) |
46.05 years when a 2x10GE card is configured; 57.08 years when a 4xGE front card is configured; 25.58 years when a 4x10GE front card is configured |
|
Memory |
512 MB |
|
Flash |
64 MB |
|
Power consumption |
80.7 W |
|
Dimensions (W x D x H) |
442.0 mm x 220.0 mm x 43.6 mm |
|
Weight |
Fully loaded _ 6.5 kg Empty loaded _ 5 kg |
Product Details
Figure 2 shows the front panel of LS-S5328C-HI-24S.
Note:
|
_ |
Power module slot 1 |
|
_ |
Power module slot 2 |
|
_ |
ESD jack |
|
_ |
One console port |
|
_ |
One ETH management port |
|
_ |
Front card slot |
|
_ |
One USB port |
|
_ |
Twenty-four 100/1000BASE-X Ethernet optical ports |
Figure 3 shows the back panel of LS-S5328C-HI-24S.
Note:
|
_ |
Ground screw |
|
_ |
Monitoring port |
The Modules
Table 2 shows the recommended elements for the LS-S5328C-HI-24S.
|
Model |
Description |
|
FE-SFP Optical Transceiver |
|
|
Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC) |
|
|
Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC) |
|
|
Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC) |
|
|
GE-SFP Optical Transceiver |
|
|
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
|
|
10G-SFP+ Optical Transceiver |
|
|
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
|
|
Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
|
|
Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC) |
|
Compare to Similar Items
Table 3 shows the comparison of LS-S5328C-HI-24S and LS-S5328C-EI-24S.
|
Product Code |
LS-S5328C-HI-24S |
|
|
Fixed Port |
Twenty-four 100/1000BASE-X Ethernet optical ports |
24*10/100 /1000 Base-TX |
|
Maximum stack bandwidth (bidirectional) |
80 Gbit/s |
48 Gbit/s |
|
RPS |
Not supported |
Not supported |
|
PoE |
No |
No |
|
Mean time between failures (MTBF) |
46.05 years when a 2x10GE card is configured; 57.08 years when a 4xGE front card is configured; 25.58 years when a 4x10GE front card is configured |
41.33 years when a 2x10GE card is configured; 50.00 years when a 4xGE front card is configured; 26.52 years when a 4x10GE front card is configured |
|
Memory |
512 MB |
256 MB |
|
Flash |
64 MB |
32 MB |
|
Power consumption |
80.7 W |
< 60 W |
|
Dimensions (W x D x H) |
442.0 mm x 220.0 mm x 43.6 mm |
442.0 mm x 420.0 mm x 43.6 mm |
|
Weight |
Fully loaded _ 6.5 kg Empty loaded _ 5 kg |
Fully loaded _ 8.5 kg Empty loaded _ 5 kg |
