Huawei S5700 Series Switches
Security: User privilege management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface, and VLAN Port isolation, port security, and sticky MAC MFF Blackhole MAC address entries Limit on the number of learned MAC addresses 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC SSH v2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense Blacklist and whitelist
Dimensions (W x D x H): 442 x 310 x 43.6 mm
Input voltage: AC: -Rated voltage range: 100 V to 240 V AC, 50/60 Hz -Maximum voltage range: 90 V to 264 V AC, 47/63 Hz
Reliability: Ethernet OAM (IEEE 802.3ah and 802.1ag) ITU-Y.1731 DLDP LACP
Multicast: IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics
Interoperability: Supports VBST (Compatible with PVST/PVST+/RPVST) Supports LNP (Similar to DTP) Supports VCMP (Similar to VTP)
VLAN: 4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN Mapping
Management and maintenance: Virtual cable test Port mirroring and RSPAN (remote port mirroring) Remote configuration and maintenance using Telnet SNMP v1/v2c/v3 RMON Web NMS HGMP System logs and alarms of different levels 802.3az EEE sFlow
Fixed port: 48 x 10/100/1000Base-T, 4 x 10GE SFP+
MAC address table: IEEE 802.1d compliance MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses MAC address entries: 16K
Operating environment: Operating temperature: 0_–50_ Relative humidity: 10%–90% (non-condensing)
IPv6 features: Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping
IP routing: Static routing
QoS/ACL: Rate limiting on packets sent and received by an interface Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports
Ring protection: RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover SEP ERPS(G.8032) STP, RSTP, and MSTP BPDU protection, root protection, and loop protection BPDU Tunnel
MPLS features: MPLS L3VPN MPLS L2VPN(VPWS/VPLS) MPLS-TE MPLS QoS
Access Security: DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security
Powerconsumption: <479.3W (PoE: 370W)
Файлы: https://www.router-switch.com/media/upload/product-pdf/comparison-of-huawei-s5700--li-si-ei-and-hi-series-switches.pdf, https://www.router-switch.com/media/upload/product-pdf/quick-check-of-huawei -s5700-enterprise-switches.pdf, https://www.router-switch.com/huawei-s5700-52-pwr-li-ac-datasheet-pdf.html
The S5700-52X-PWR-LI-AC gigabit enterprise switch is next-generation energy-saving switch developed by Huawei. With 48 10/100/1,000 Base-T Ethernet ports and 4 10 GE SFP+ ports, it provides a large switching capacity and high-density GE ports to implement quick upstream transmissions, widely used in various application scenarios like enterprise park access, convergence, gigabit access of data center application scenarios. The unique PoE function has satisfied the demand of higher power transmission and farther driving distance, ensuring the smoothness and stability of video transmission. Using advanced energy conservation technology, the S5700-52X-PWR-LI-AC is dedicated to helping enterprise customers build a reliable and secure next-generation IT network.
Quick Specs

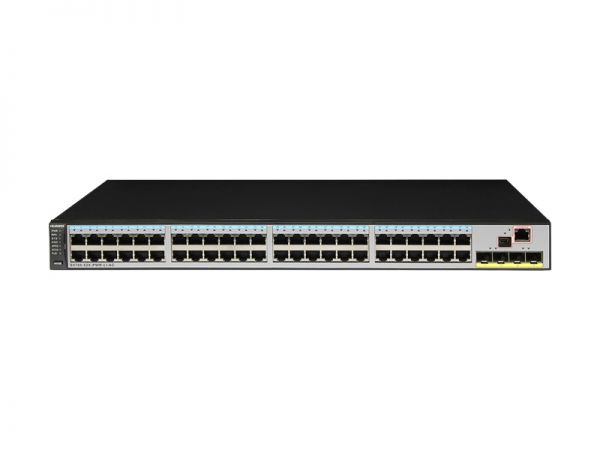

Figure 1 shows the appearance of Huawei S5700-52X-PWR-LI-AC.
Table 1 shows the Quick Specs.
|
Product Code |
S5700-52X-PWR-LI-AC |
|
Fixed Ports |
48 x 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports |
|
MAC Address Table Size |
16 MAC |
|
Voltage Required |
AC Rated voltage range: 100V to 240V AC, 50/60 Hz Maximum voltage range: 90V to 264V AC, 47/63 Hz |
|
Power Device |
AC power supply, supporting RPS |
|
PoE |
PoE+ |
|
Power Consumption Operational |
< 479.3W (PoE: 370W) |
|
Forwarding Performance |
132 Mpps |
|
Switching Capacity |
256 Gbit/s |
|
Memory (RAM) |
256 MB |
|
Flash |
200 MB |
|
Dimensions (W x D x H) |
442 mm x 310 mm x 43.6 mm |
|
Weight |
6.7 kg |
Product Details
Figure 2 shows the front panel of Huawei S5700-52X-PWR-LI-AC.
Note:
|
_ |
Forty-eight PoE+ 10/100/1000BASE-T ports |
_ |
Four 10GE SFP+ ports |
|
_ |
One mini USB port |
_ |
One console port |
Figure 3 shows the back panel of HuaweiS5700-52P-PWR-LI-AC.
Note:
|
_ |
Ground screw |
_ |
RPS socket |
|
_ |
Jack for AC terminal locking latch |
_ |
AC socket |
*The ground screw is used with a ground cable.
*RPS socket is used with an RPS cable, which is not hot swappable. A PoE switch can have an RPS power supply connected to this socket to provide inputs for system power supply and PoE power supply. The two inputs are independent of each other. The RPS power supply can also be used as a backup of the system power supply when it does not provide PoE power.
*The AC terminal locking latch is not delivered with the switch.
*AC socket is used with an AC power cable.
Recommended Modules
Table 2 shows the recommended modules.
|
Category |
Model |
Description |
|
FE-SFP Optical Transceiver |
Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm,2km,LC) |
|
|
Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm,15km,LC) |
||
|
Optical Transceiver, eSFP, FE, Single-mode Module(1310nm,40km,LC) |
||
|
GE Optical Transceiver |
Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) |
||
|
Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) |
||
|
Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) |
||
|
GE Copper Transceiver |
Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45) |
Compare with Similar Item
Table 3 shows the comparison of Huawei S5700-52X-LI-AC and S5700-52X-PWR-LI-AC.
|
Models |
S5700-52X-PWR-LI-AC |
|
|
Fixed Ports |
48 x 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports |
48 x 10/100/1,000 Base-T Ethernet ports, 4 x 10 GE SFP+ ports |
|
Power Supply |
AC |
AC |
|
PoE |
Not supported |
Supported |
|
Forwarding Performance |
132 Mpps |
132 Mpps |
|
Switching Capacity |
256 Gbit/s |
256 Gbit/s |
|
Power Consumption |
< 61W |
< 479.3W (PoE: 370W) |
