Huawei S5700 Series Switches

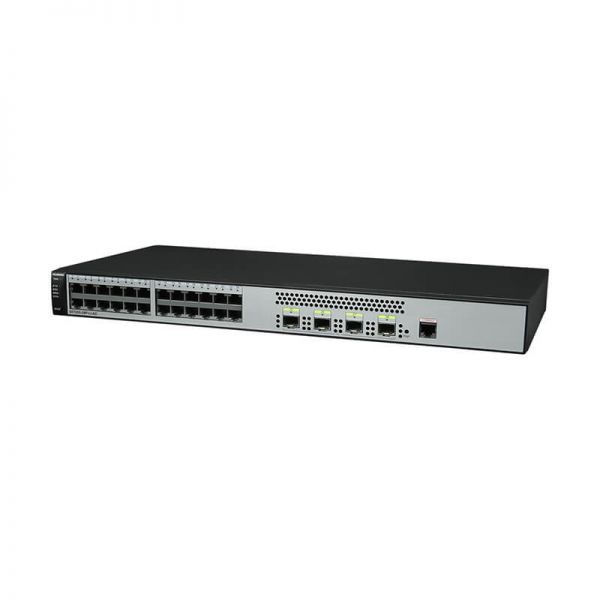

Model: S5720SV2-28P-LI-AC - Huawei S5700 Series Switches
Brand: Huawei
Flash Memory: 256 MB
Operating Temperature: 0__C to 45__C
Product Name: S5720SV2-28P-LI-AC
Management: SNMP 1, RMON 2, SNMP 3, SNMP 2c, HTTP, CLI
Device Type: Switch - 28 ports - Managed
Performance: Switching capacity: 128 Gbps
RAM: 512 MB
Compliant Standards: NEBS level 3, FCC Part 15 A, CISPR 22 Class A
Power: AC 120/230 V (50/60 Hz)
Enclosure Type: Rack-mountable 1U
Power Consumption Operational: Maximum 445 W
Dimensions (W x D x H): 442 mm x 220 mm x 43.6 mm
Throughput: Up to 95.2 Mpps
Series: S5700
Ports: 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Operating Humidity Range: 10 to 90% (non-condensing)
MAC Address Table Size: 16K entries
Jumbo Frame Support: 9216 bytes
Networking Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z
Power Over Ethernet (PoE): PoE+
Authentication Methods: RADIUS, TACACS+
PoE Budget: 370 W
Файлы: https://www.router-switch.com/media/upload/product-pdf/quick-check-of-huawei -s5700-enterprise-switches.pdf, https://www.router-switch.com/huawei-s5720sv2-28p-li-ac-datasheet-pdf.html

The Huawei S5720SV2-28P-LI-AC switch is an integral component of the Huawei S5700 Series Switches, designed for high-reliability, high-security, and energy-saving networking solutions. Tailored for enterprise and commercial deployment, this switch guarantees enhanced networking performance and a seamless user experience.

Quick Spec

Brand	Huawei
Product Name	S5720SV2-28P-LI-AC
Series	S5700
Ports	24 Ethernet 10/100/1000 Ports, 4 of which are dual-purpose 10/100/1000 or SFP
Power Supply	AC 110/220V

Product Features

• _ Support for flexible Ethernet networking with 24 Ethernet 10/100/1000 ports and 4 dual-purpose 10/100/1000 or SFP ports.
• _ Layer 3 routing support provides advanced network segmentation and efficient traffic management.
• _ Energy-saving design to minimize power consumption without sacrificing performance.
• _ Robust security features including 802.1x, Radius, AAA, and advanced encryption standards.
• _ Easy management and operation with comprehensive Web-based, CLI, and SNMP support.

Product Applications

The Huawei S5720SV2-28P-LI-AC switch is ideal for:

• _ Small to medium-sized business networks requiring high-speed data transfer and secure connectivity.
• _ Enterprise branch offices needing reliable access to central corporate resources.
• _ Smart classroom environments where multimedia resources are heavily utilized.

Supported Options

Optical Transceivers	eSFP, 1000BASE-SX/LX/EX/ZX/LH/100BASE-EX/100BASE-FX
Network Cables	CAT5e, CAT6, CAT6A
Rack Mount Kit	Yes

Compare to Similar Items

Model	Differences
S5710-28P-LI-AC	Lower total port count; no support for dual-purpose ports
S5720-32P-EI-AC	Higher port density with additional functionality; increased price
S5720S-28P-LI-AC	Simplified software features; tailored for basic networking needs

Get more information on the Huawei S5720SV2-28P-LI-AC and how it can support your networking needs by contacting our Live Chat or emailing [email protected]. Our team is ready to provide you with further details on product specifications, pricing, and more to ensure you make the most informed decision for your infrastructure.
