Huawei S5700 Series Switches
Dimensions (H x W x D): Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Relative humidity: 5% to 95%, noncondensing
PoE: Not supported
Operating temperature: -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F).
Certification: EMC certification Safety certification Manufacturing certification
Availability: > 0.99999
RTC: Supported
Flash: 1 GB in total. To view the available flash memory size, run the display version command.
Storage temperature: -40°C to +70°C (-40°F to +158°F)
Operating altitude: 0-5000 m (0-16404 ft.)
Memory (RAM): 4 GB
Uplink Ports: Four 1000BASE-X ports
Mean time between failures (MTBF): 57.73 years
Rated voltage range: AC input: 100 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC DC input: -48 V DC to -60 V DC
Maximum voltage range: AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Part number: 02353DJE 02353DJE-001
Downlink Ports: Twenty-four 10/100/1000BASE-T ports
Service port surge protection: Common mode: ±6 kV
Power supply surge protection: Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Noise under normal temperature (27°C, sound power): < 57.5 dB(A)
Mean time to repair (MTTR): 2 hours
Stack ports: 1000BASE-X ports on the front panel
RPS: Not supported
Maximum power consumption (100% throughput, full speed of fans): 91 W
Typical power consumption (30% of traffic load, tested according to ATIS standard): 70 W
Старая цена: 6360
Файлы: https://www.router-switch.com/media/upload/product-pdf/huawei-cloudengine-s5731-h-s5731-s-switches-datasheet.pdf, https://www.router-switch.com/media/upload/product-pdf/quick-check-of-huawei -s5700-enterprise-switches.pdf, https://www.router-switch.com/huawei-s5731s-h24t4s-a-datasheet-pdf.html

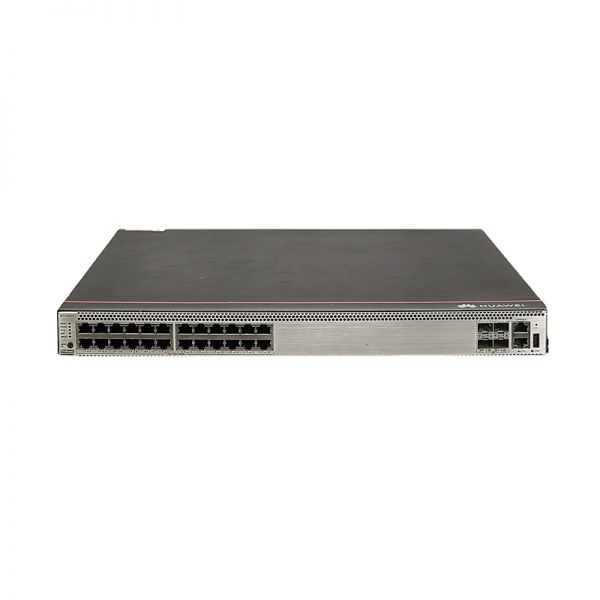

S5731S-H24T4S-A is the Huawei S5731 switch, providing 24 x 10/100/1000BASE-T ports, 4 x GE SFP+, and 1 x 150W AC Power Supply. It’s a Distribution model.
Quick Spec
Table 1 shows the quick spec.
|
Model |
S5731S-H24T4S-A |
|
Downlink Ports |
Twenty-four 10/100/1000BASE-T ports |
|
Uplink Ports |
Four 1000BASE-X ports |
|
Memory (RAM) |
4 GB |
|
Dimensions (H x W x D) |
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.) |
|
Stack ports |
1000BASE-X ports on the front panel |
|
Part number |
02353DJE 02353DJE-001 |
Product Details
Figure 1 shows the front panel of S5731S-H24T4S-A.
Note:
|
_ |
Twenty-four 10/100/1000BASE-T ports |
_ |
One USB port |
|
_ |
Four 1000BASE-X ports |
_ |
One ETH management port |
|
_ |
One console port |
|
|
Figure 2 shows the back panel of S5731S-H24T4S-A.
Note:
|
_ |
Ground screw |
_ |
Power module slot 1 |
|
_ |
Fan module slot 1 |
_ |
Power module slot 2 |
|
_ |
Fan module slot 2 |
|
|
Supported Transceivers
Table 2 shows the recommended models.
|
Model |
Description |
|
Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
|
|
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
|
|
Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
|
|
Optical Transceiver, eSFP, GE, Multi-mode Module (850nm,0.5km, LC) |
Compare to Similar Items
Table 3 shows the comparison.
|
Product Model |
S5731S-H24T4S-A |
|
|
Fixed Ports |
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
24 x 10/100/1000BASE-T ports, 4 x 1000BASE-X ports |
|
PoE+ |
Supported |
NOT Supported |
